智能型15ppm艙底水油含量監測裝置 |
油分量程: |
0~40 ppm |
準確度±: |
5~30 ppm |
精度: |
NA |
報警設置調整: |
用戶可調整 |
報警上限數值1: |
15 ppm |
報警上限數值2: |
15 ppm |
自動清洗元件: |
可選購 |
應用領域: |
MEPC 107(49) and MEPC285(70) bilge water discharge ; Rig slop tank discharge ; Air cooler drains overboard discharge ; Oily water separator discharge |
識別油種: |
HFO; Diesel ; Mixture C |
懸浮物識別: |
100ppm Iron Oxide in 10 ppm Diesel |
反應時間: |
< 5 sec (oil reading) |
報警延遲時間: |
0 – 5 seconds user adjustable (Oil alarm 1) ; 0 – 600 seconds user adjustable (Oil alarm 2) |
清潔水校準: |
+/- 2 ppm of factory set values |
輸出信號: |
Active 4-20mA / 0 - 20mA |
IMO調查數據存儲及調取方式: |
Stored in control enclosure , retrieved from Via LCD display, RS 232 comms link or USB |
防護等級: |
IP65 |
符合標準: |
MEPC 107(49) – DNV-GL, USCG, CCS, Class NK, Russian Register, Transport Canada |
性能亮點: |

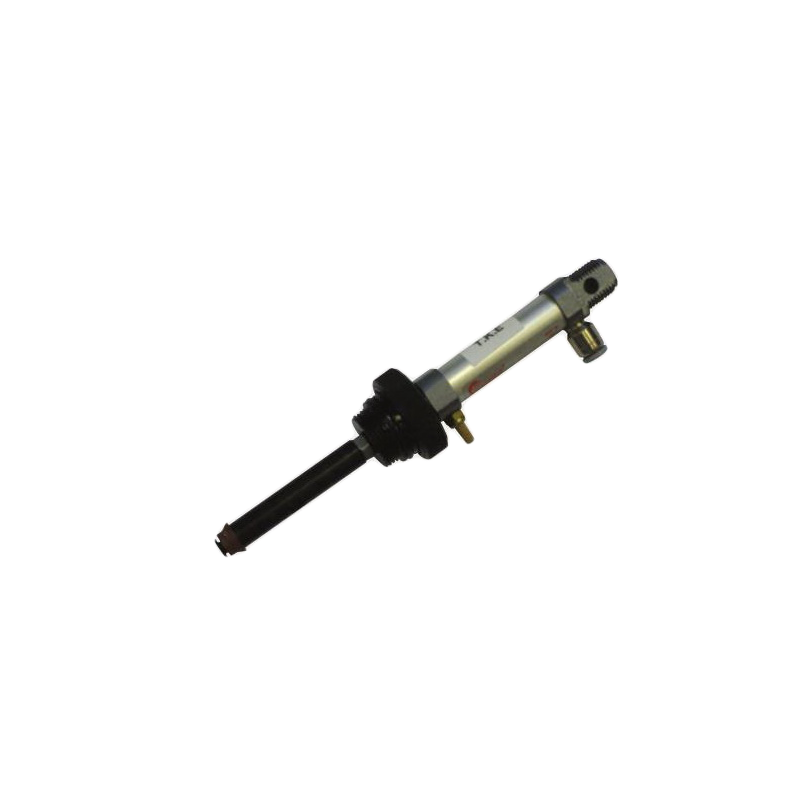

The OCM can analyse all three oil types simultaneously without the need for re-calibration ; Replacement calibrated measuring cells can be changed |
